FIBREGLASS (GRP) MOULDED GRATINGS

  • CHARACTERISTICS
  • MESHES & SURFACES
  • APPLICATIONS
  • DOWNLOADS

EUROGRATE® GRP (Glass Reinforced Plastic) moulded gratings offer significant economic and safety benefits, due to the unique Teknotex manufacturing process, combined with the use of high quality raw materials.

Moulded gratings are composite products, suitable for use in any situation. They are installed for many applications in various sectors, including chemicals, construction, railway, and water treatment.

EUROGRATE® fibreglass moulded gratings are ideal for environments where there are corrosion problems and, depending on the customer's requirements, they are available in various resins, with many meshes and types of surface.

EXAMPLES OF AVAILABLE RESINS



ASK FOR A PERSONALISED ESTIMATE @

To complete our service to the customer, we offer a range of complementary products: stair treads, stair tread covers, closed panels, flat panels, fencing, handrails, fixed vertical ladders and structural profiles. Our moulded and pultruded gratings can be combined to build structures made completely of fibreglass (GRP).

EUROGRATE® fibreglass or GRP moulded gratings are available in the main types of resin: orthophthalic, isophthalic, vinylester and phenolic; fire resistant and low smoke emission formulations can be formulated (M1-F0, M1-F1, ASTM E 84, BS part 7, ASTM F3059-15 L2, IMO MED, etc.)

The combination of resins and glass fibre used results in the following distinctive characteristics:

  • MECHANICAL RESISTANCE: able to support loads up to several tonnes;
  • CORROSION RESISTANCE: resistant to acids and the most aggressive agents;
  • ELECTRICAL AND THERMAL INSULATION: non-magnetic and non-conductive, they do not require earthing;
  • SAFETY: anti-slip, self-extinguishing, suitable for food contact;
  • COST EFFECTIVE: maintenance free, long life, durable performance and appearance;
  • LIGHTWEIGHT: easy to cut, move and install.
  • FIRE RESISTANCE
  • RADIO TRANSPARENCY

For technical documentation, contact EUROGRATE® by email at info@eurograte.com or fill in the online form.
As a manufacturer, EUROGRATE® can supply specific meshes and formats on request.
EUROGRATE® makes its certificates available.
See the certifications awarded to EUROGRATE®.

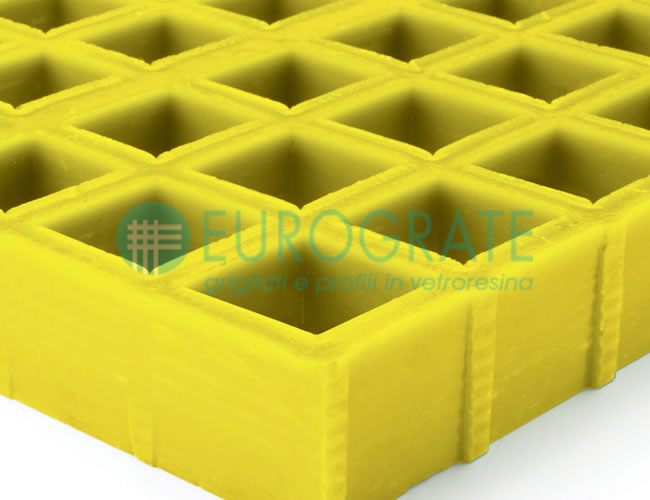

  • STANDARD OPEN MESH MOULDED GRATINGS
  • MOULDED GRATINGS WITH CLOSED OR SANDWICH MESHES
  • TYPES OF SURFACES AND RESINS

SQUARE MESHES
Image Height
(mm)
Meshes
(mm)
Net hole
(mm)
Weight
(Kg/m2)
Sizes available
(mm)
square open mesh moulded grating 13 38 x 38 32,0 x 32,0 ~ 6,50 1220 x 3660, 1220 x 2240
13 50 x 50 43,0 x 43,0 ~ 6,00 1220 x 3660, 1220 x 2240
25 38 x 38 31,0 x 31,0 ~ 12,50 1000 x 2000, 1000 x 3000,
1000 x 4000, 1220 x 3660
25 40 x 40 32,0 x 32,0 ~ 13,00 1000 x 2000, 1000 x 3000,
1000 x 4000, 1200 x 3000
30 38 x 38 35,0 x 32,0 ~ 14,70 1000 x 2000, 1000 x 3000,
1000 x 4000, 1220 x 3660,
1500 x 4000
30 40 x 40 32,0 x 32,0 ~ 15,50 1000 x 2000, 1000 x 3000,
1000 x 4000, 1200 x 3000
38 38 x 38 31,0 x 31,0 ~ 18,70 1000 x 2000, 1000 x 3000,
1000 x 4000, 1220 x 3660,
1500 x 4000
38 40 x 40 32,0 x 32,0 ~ 21,00 1000 x 2000, 1200 x 3000,
1000 x 4000, 1500 x 3000
50 38 x 38 30,0 x 30,0 ~ 29,00 1220 x 3660
50 HD 38 x 38 27,5 x 27,5 ~ 40,00 1220 x 3660
50 50 x 50 42,0 x 42,0 ~ 21,30 1220 x 3660
60 38 x 38 29,0 x 29,0 ~ 29,00 1220 x 3660
MINI SQUARE MESHES
Image Height
(mm)
Meshes
(mm)
Net hole
(mm)
Weight
(Kg/m2)
Sizes available
(mm)
Mini square open mesh moulded grating 30 25 x 25 17,0 x 17,0 ~ 16,00 1000 x 2000, 1000 x 3000,
1000 x 4000, 1200 x 2000,
1200 x 4000, 1500 x 3000
40 25 x 25 17,0 x 17,0 ~ 21,00 1000 x 2000, 1000 x 4000
50 25 x 25 17,0 x 17,0 ~ 23,20 1220 x 3660
55 25 x 25 16,5 x 16,5 ~ 30,70 1258 x 4058

NB: All gratings with mini meshes must be installed with special grating fasteners because they have a natural tendency to warp

MICRO SQUARE MESHES
Image Height
(mm)
Meshes
(mm)
Net hole
(mm)
Weight
(Kg/m2)
Sizes available
(mm)
Micro square open mesh moulded grating 30 13 x 13 7 x 7 ~ 22,00 1007 x 3007, 1007 x 4047
30 16 x 16 8 x 8 ~ 19,50 1000 x 3000
30 20 x 20 13 x 13 ~ 18,00 1000 x 4083, 1220 x 3660
38 13 x 13 7 x 7 ~ 23,80 1007 x 4047, 1527 x 4047
38 20 x 20 13 x 13 ~ 23,00 1000 x 4083, 1220 x 3660

NB: All gratings with micro meshes must be installed with special grating fasteners because they have a natural tendency to warp

RECTANGULAR MESHES
Image Height
(mm)
Meshes
(mm)
Net hole
(mm)
Weight
(Kg/m2)
Sizes available
(mm)
Rectangular open mesh moulded grating 25 100 x 25 92 x 19 ~ 12,50 1000 x 2000, 1000 x 3000,
1000 x 4000
25 100 x 50 93 x 44 ~ 7,60 1500 x 2000
28 100 x 50 93 x 43 ~ 9,30 1500 x 2000
55 50 x 25 40 x 16 ~ 30,00 1500 x 3000

CLOSED UPPER SURFACE
Image Height
(mm)
Meshes
(mm)
Weight
(Kg/m2)
Sizes available
(mm)
Closed mesh moulded grating 25+3 40 x 40 ~ 18,00 1000 x 2000, 1000 x 3000,
1000 x 4000, 1200 x 3000
30+3 40 x 40 ~ 20,50 1000 x 2000, 1000 x 3000,
1000 x 4000, 1200 x 3000
38+3 40 x 40 ~ 26,00 1000 x 2000, 1000 x 4000,
1200 x 3000, 1500 x 3000
50+3 38 x 38 ~ 35,00 1220 x 3660
50+3 50 x 50 ~ 27,00 1220 x 3660

NB: the surface type for all products is standard silica grit
EUROGRATE® is at your disposal for non-standard requests.

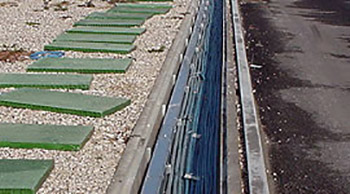

EUROGRATE® makes fibreglass (GRP) access chambers, drains and open or closed trenches - load bearing capacity from 2000 daN to 5000 daN depending on the length of the trench.
[+]GRP fibreglass access chambers
SANDWICH (CLOSED BOTH SIDES)
Image Height
(mm)
Meshes
(mm)
Weight
(Kg/m2)
Sizes available
(mm)
Sandwich mesh moulded grating 25+3+3 40 x 40 ~ 23,00 1000 x 2000, 1000 x 3000,
1000 x 4000, 1200 x 3000
30+3+3 40 x 40 ~ 25,50 1000 x 2000, 1000 x 3000,
1000 x 4000, 1200 x 3000
38+3+3 40 x 40 ~ 29,50 1000 x 2000, 1000 x 4000,
1200 x 3000, 1500 x 3000
50+3+3 38 x 38 ~ 41,00 1220 x 3660
50+3+3 50 x 50 ~ 33,00 1220 x 3660

NB: the surface type for all products is standard silica grit.
EUROGRATE® is at your disposal for non-standard requests.

EUROGRATE® makes fibreglass (GRP) access chambers, drains and open or closed trenches - load bearing capacity from 2000 daN to 5000 daN depending on the length of the trench.
[+]GRP fibreglass trench covers
[+]GRP fibreglass access chambers

TYPES OF SURFACE:

EUROGRATE® GRP gratings are available with a variety of surfaces:

  • open surface with silica grit, open concave, open smooth,
  • closed surface with silica grit, closed with a chequer pattern,
  • dissipative ESD and conductive ATEX safety surfaces.

Here are some examples of surfaces manufactured by EUROGRATE®.
EUROGRATE® is ready and willing to supply our customers with standard or made-to-order products.

TYPES OF RESIN:

EUROGRATE® fibreglass or GRP moulded gratings are available in the main types of resin: orthophthalic, isophthalic, vinylester and phenolic; fire resistant and low smoke emission formulations can be formulated (M1-F0, M1-F1, ASTM E 84, BS part 7, ASTM F3059-15 L2, IMO MED, etc.).



- Food Sector
- Chemicals Sector
- Water Treatment Sector
- Construction and Civil Engineering Sector
- Electricity Sector
- Railway Sector
- Engineering Sector
- Marine Sector
- Oil & Gas Sector
- Transport Sector
- Metal Treatment Sector
- and many other application sectors
